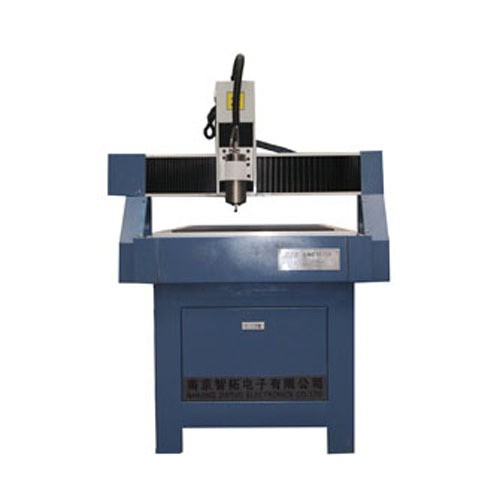

Function Characteristics:
1. The machine holistic Aluminium casting, with high-rigidity, good hardness, firmness without deformation;
2. The imported two-bolt poles rolling ball screw guarantee the accurate
3. Stronger compatible: Type3/Artcam/ Castmate/Proe/UG//CAD/CAM Software
4. Be applicable to various in general use material goes forward to go the carvings, incise, three kinds of float, the depth process.
| Type |
LB-6090 |
| XY axle distance |
600mm *880mm |
| Z axle distance |
150mm |
| Maximum speed |
6.0(m/min) |
| Differentiate effciency |
0.005mm |
| Driving style |
Step |
| Processing Unit |
PCI\DSP(32M,128M) |
| Transmission belt |
Screw drive |
| Guide |
Circular guide |
| Interface screen |
Win/USB |
| Software working condition |
Windows2000/XP/98 |
| Carving orders |
G-code/HP-GL |
| Power consume(No major axle) |
1000W |
| Major axle |
1500W(water-colded) |
| Major axle speed |
0-24000(circle/min) |
| Carving diameter |
3.175mm/4mm/6mm |
| Power source |
220V50HZ
|
