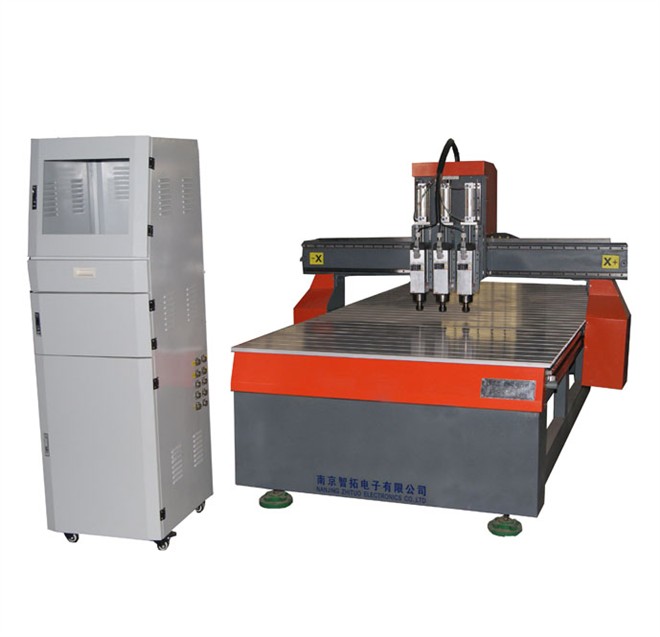

Function Characteristics
1. The lathe bed uses the thick wall side tube welding to become, passes through giant Dragon Gate to dig processing, firm does not change form, durable
2. The Y axis uses the double motor-driven, the high accuracy gear rack drive, the power is big, the movement is steady;
3. Woodworking Machine uses the import square shape straight line guide rail, guaranteed that machines precision and may withstand shoulders;
4. To use the international leading technical vacuum greatly to adsorb the floor, provides the suction greatly strengthened vacuum pump, but force adsorption different areas material;
5. Has the break point to remember, the power failure continues the vulture, functions and so on process period predict that guaranteed that continued in the accident or the previous day situation to process.
Tenchnical Parameter:
| Type |
LB-3D-1325 |
| X/Y axle distance |
1280mm *2500mm |
| Z axle distance |
200mm |
| Z axle quantity |
3 |
| Max speed |
26.0(m/min) |
| Differentiate |
0.15mm |
| Processing |
6A |
| Transmission |
Pinion and rack |
| Drive belt |
Servo |
| Interface screen |
Win/DSP |
| Sofeware working condition |
Windows2000/XP/98 |
| Carving orders |
G-code/HP-GL |
| Power consume(No major axle) |
1500w |
| Major axle |
3500W(Air) |
| Major axle speed |
0-24000(Circle/min) |
| Power |
380V/60HZ |
